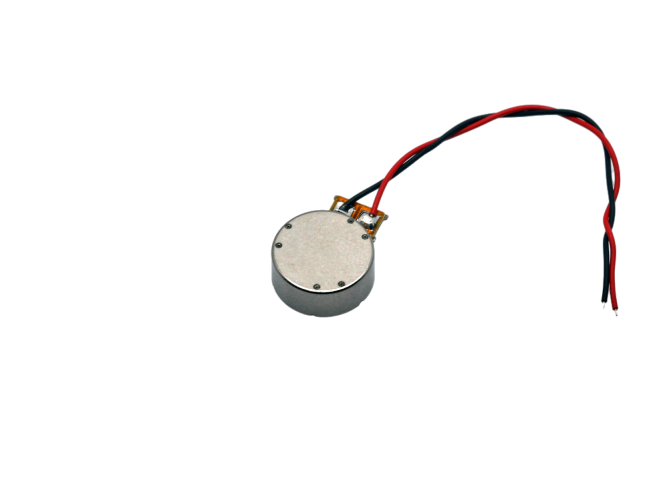

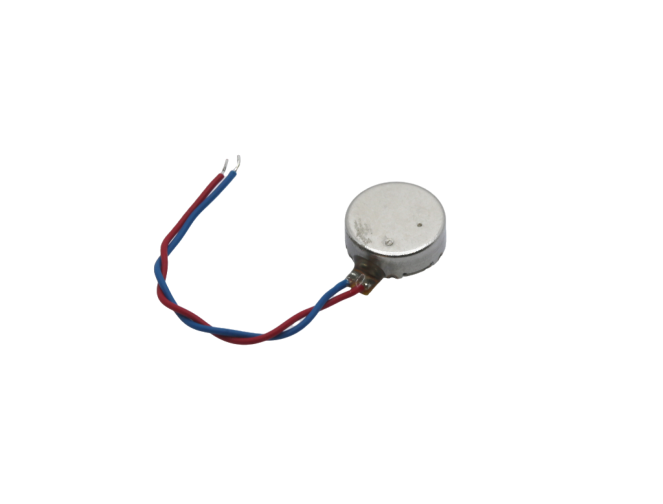

0832

Linear Resonant Actuators

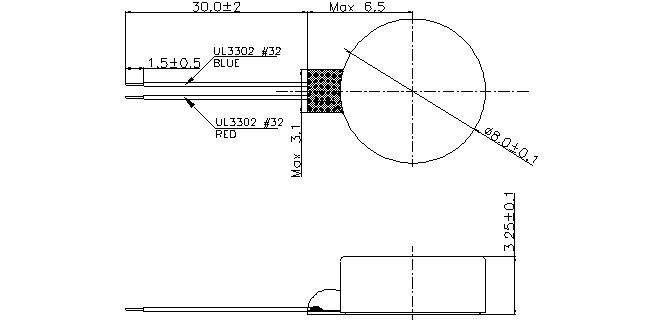

1. Size parameters are for reference only

2. Motor related accessories such as lead wires, FPC, etc. can be customized to the customer's needs.

Detailed parameters

Model:	0832
Using range:	1.0-3.0 Vrms AC
Workable Range:	1.8Vrms AC
Resonance Frequency:	205±5Hz
Vibration:	0.8G/Min
Rated Current:	0.10A max
Rising Time:	18ms max
Falling Time:	20ms max
Noise:	50dB max
Resistance:	22±2Ω
