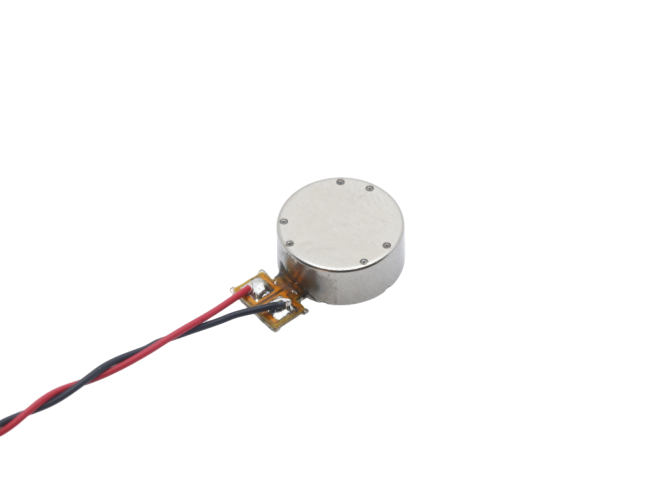

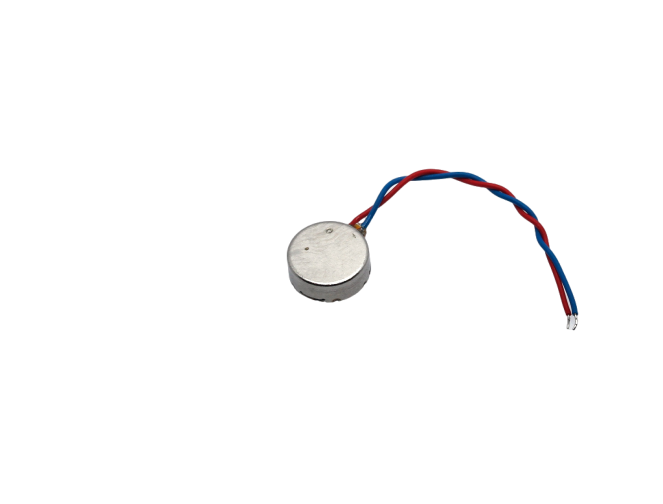

1040

Linear Resonant Actuators

1. Size parameters are for reference only

2. Motor related accessories such as lead wires, FPC, etc. can be customized to the customer's needs.

Detailed parameters

Model:	1040
Using range:	1.0-3.0 Vrms AC
Workable Range:	2.5Vrms AC
Resonance Frequency:	170±5Hz
Vibration:	1.7G/Min
Rated Current:	0.17A max
Rising Time:	15ms max
Falling Time:	25ms max
Noise:	42dB max
Resistance:	14±3Ω
