061228

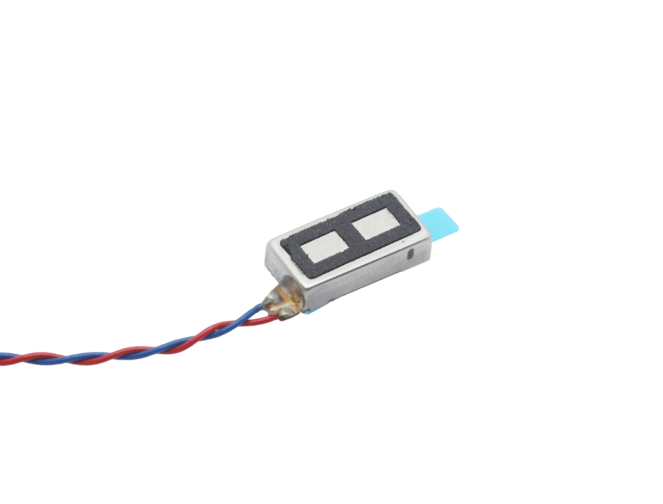

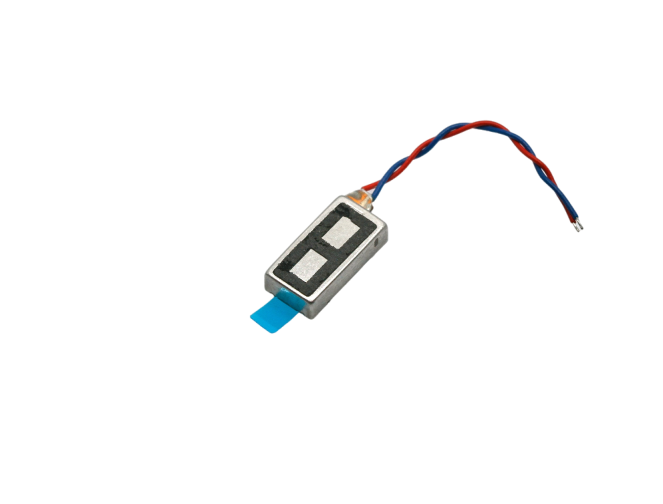

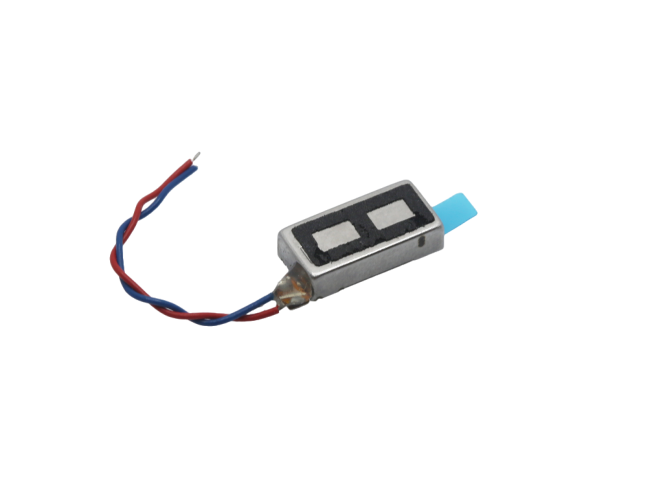

Linear Resonant Actuators

1. Size parameters are for reference only

2. Motor related accessories such as lead wires, FPC, etc. can be customized to the customer's needs.

Detailed parameters

Model:	061228
Using range:	1.0-3.0 Vrms AC
Workable Range:	10Vrms AC
Resonance Frequency:	180±10%Hz
Vibration:	0.7G/Min
Rated Current:	0.15A max
Rising Time:	50ms max
Falling Time:	50ms max
Noise:	48dB max
Resistance:	15±3Ω
