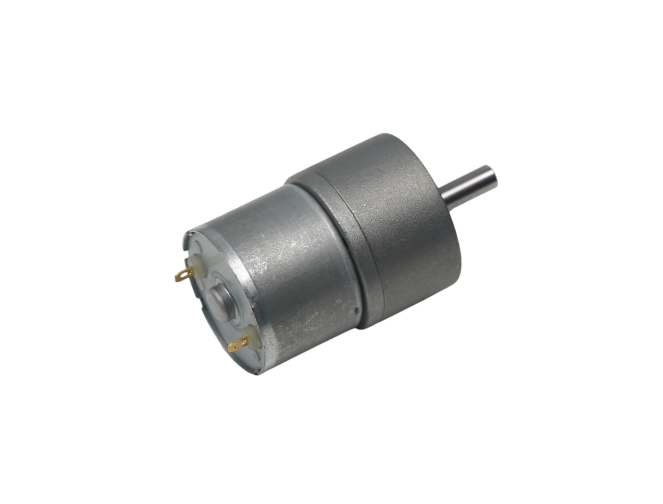

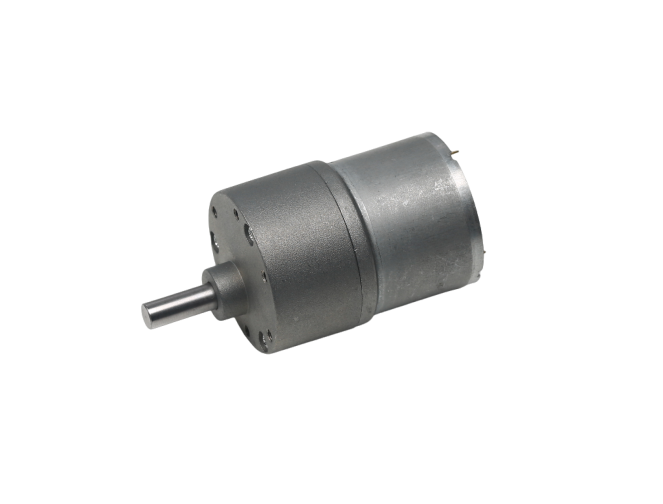

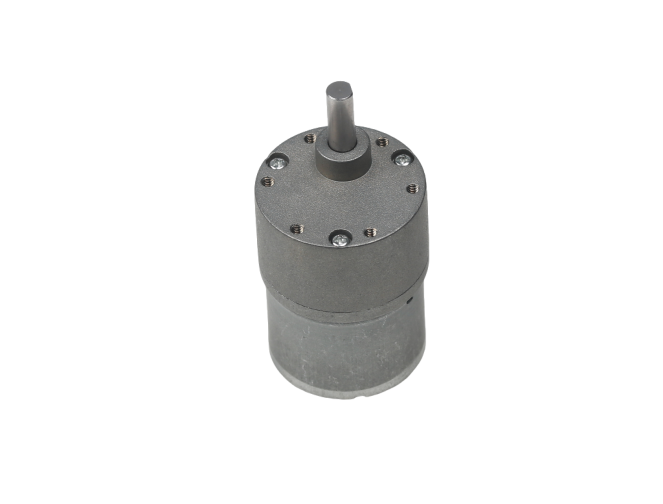

WS-37GB520
Gear Motor
1. Size parameters are for reference only
2. The electrical performance such as voltage and speed can be evaluated and customized by changing the motor winding
3. According to the actual situation to provide motor accessories, such as lead, connector, gear, worm and so on
4. Add EMC components based on customer requirements
Detailed parameters
| Model: | WS-37GB520 |
| Using Rangel Voltage: | 6.0-24.0 |
| Workable Range Voltage: | 24.0V |
| Speed at Max Efficiency: | 148 RPM |
| Current at Max Efficiency: | 0.24A |
| Torque at Max Efficiency: | 1786 g.cm |
| Output at Max Efficiency: | 2.71W |
| Stall Torque: | 10000g.cm |
| Stall Torque Current: | 1.10A |
