0408

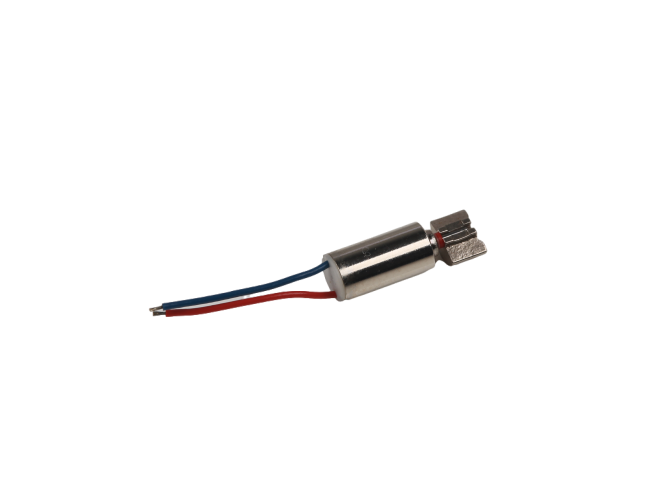

Coreless Motors
1. Size parameters are for reference only
2. The electrical performance such as voltage and speed can be evaluated and customized by changing the motor winding
3. According to the actual situation to provide motor accessories, such as lead, connector, gear, worm and so on
4. Add EMC components based on customer requirements
Detailed parameters
| Model: | 0408 |
| Axial Play: | 0.05-0.30mm |
| Force of Press-fits: | N/A |
| Radial: | 0.8N |
| Axial: | 9.8N |
| Environment Temperature Range: | -20 -±65°C |
| Maximum Temperature for Motor: | +80°C |
| Motor Weight: | 0.5g |
